Ultima Logo

Ultima
AIR CLEANER Assembly
EPA Air Cleaner
CARB approved version

Utima air cleaners can be installed to update most existing Mikuni applications. Our mounting hardware will be required and may not be the correct spacing for your application. Manifolds using proback adaptors will set the carburetor out further and additional spacing will be required.

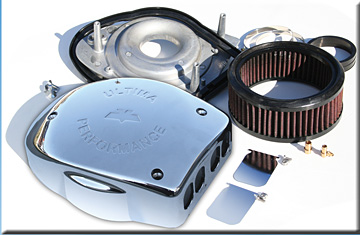

#12-170 Carb approved Ultima Air Cleaner 42/45/48, chrome.

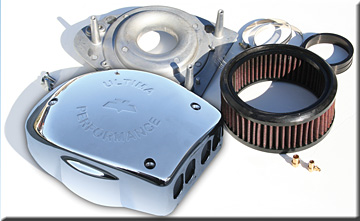

#12-171 Performance Ultima Air Cleaner 42/45/48, chrome.
#12-150 Ultima Air Cleaner outer cover, chrome.

Carb Backing Plate to Head Mounting Hardware
#12-173 Ultima Air Cleaner TC Head Breather Kit
#12-169 Ultima Air Cleaner EVO 92/99 Head Breather Kit
#12-162 Ultima Air Cleaner EVO 84/91 Mounting Hardware.

Race Version
Performance version

AIR CLEANER PARTS:Air Cleaner Parts

1. 12-152 Air filter backing plate 1
2. 12-150A Air filter cover, cast finish 1
12-362 Air filter cover, chrome
3. 12-153 EPA Air Valve 2
4. 12-154 Passive Door Clamp and Screw 2
5. 12-370 Air Filter 1
6. 12-156 Coupling 42, 45, 48 1
7. 12-157 .312” Width 3” Dia. Hose Clamp 2
8. 12-155 EPA Outer Cover Seal 1
9. 12-165 Outer cover mounting screw kit 3
10. 12-161 Hose Fitting kit 2
