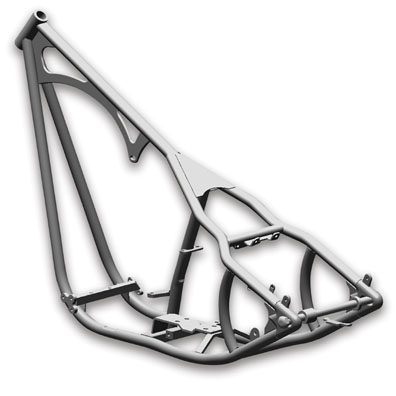

ULTIMA WIDE DRIVE 250
SERIES
RIGID STYLE
|
RIGID
STYLE
WIDE DRIVE 250 |
|
85-189 |
38 DEGREE RAKE |
8" STRETCH |
Dimensions:
Rake of 38 degrees.
8" Stretch downtubes, 26" backbone.
Material:
1020 DOM (Drawn Over Mandrel) steel tubing.
Legs are 1-3/8" O.D. with .125" thick wall.
Backbone is 1-1/2" O.D. with .219" thick wall.
Seat post is 1-1/2" O.D. with .219" thick wall.
Included
additionally:
1" Dia. rear axle (not shown).
Front oil tank mount.
Special
features:
TIG Welded.
Accepts 11" fender.
Accepts Softail® style oil tank.
Accepts 250 rear tire with full width 1.5" belt.
Integral 5th bolt mounting within reinforced
offset trans plate.
NOTE
1: Requires a 1-1/4" engine-to-inner primary spacer.
NOTE 2: Gas tank mounts, coil mounts & regulator mounts
must be determined by builder.
NOTE 3: Backbone is measured from back of neck to
front of seat plate gusset.
