ULTIMA WIDE DRIVE 250
SERIES
SOFTAIL STYLE
|
SOFTAIL
STYLE WIDE DRIVE 250 |
|

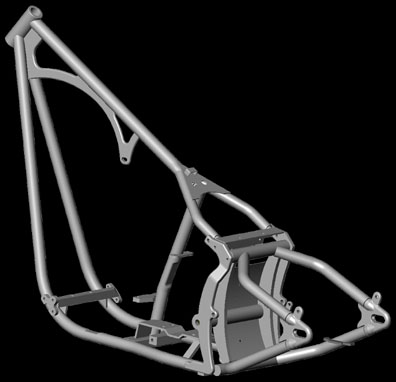

85-188 |
38 DEGREE RAKE |
8" STRETCH |
Dimensions:
Rake of 38 degrees.
8" Stretch downtubes, 26" backbone.
Material:
1020 DOM steel tubing.
Legs are 1-3/8" O.D.
Backbone is 1-1/2" O.D.
Seat post is 1-1/2" O.D.
Special features:
TIG Welded.
Accepts 11" fender.
Accepts Softail® style oil tank.
Accepts 250 rear tire with full width 1.5" belt.
Integral 5th bolt mounting within reinforced offset trans plate.
Included
additionally:
Radius style fender struts for 11" fender (not shown).
Heavy duty swing arm, with 1" axle (not shown).
Front oil tank mount.
Rear frame pivot tube and hardware including
pivot bearings & spacers.
NOTE
1: Requires a 1-1/4" engine-to-inner primary spacer.
NOTE 2: Gas tank mounts, coil mounts & regulator mounts
must be determined by builder.
NOTE 3: Backbone is measured from back of neck to
front of seat plate gusset.
