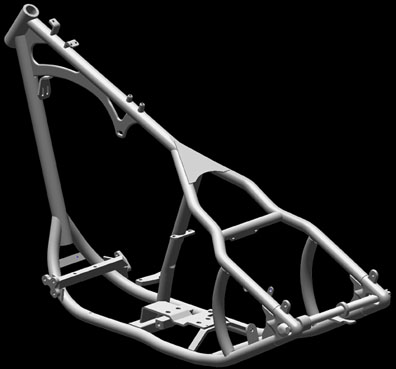

Dimensions:
Rake of 34 degrees.
4" Stretch in the single downtube.
24-1/2" Backbone, 19-1/2" single downtube length.
Material:
1020 DOM (Drawn Over Mandrel) steel tubing.
Downtube is 1-3/4" O.D.
Cradle tubes are 1-3/8" O.D.
Backbone and seat post are 1-1/2" O.D.
Special features:
TIG Welded.
Accepts 11" fender and 1984 & later flat side gas tanks.
Accepts Softail® style oil tank.
Accepts 250 rear tire with full width 1-1/2" belt.
Integral 5th bolt mounting within reinforced offset trans plate.
Included additionally:
1" Dia. rear axle kit (not shown).
Front oil tank mounts (not shown).

NOTE 1: Requires a 1-1/4" engine-to-inner primary spacer.
NOTE 2: Coil mounts and regulator mounts must be
determined by builder.
NOTE 3: Backbone is measured from back of neck to
front of seat plate gusset. Downtube is measured
from bottom of neck to top of cradle tube joint.
