ULTIMA WIDE DRIVE 250
SERIES
SOFTAIL STYLE
SINGLE DOWNTUBE
|
SOFTAIL
STYLE
/ SINGLE DOWNTUBE /

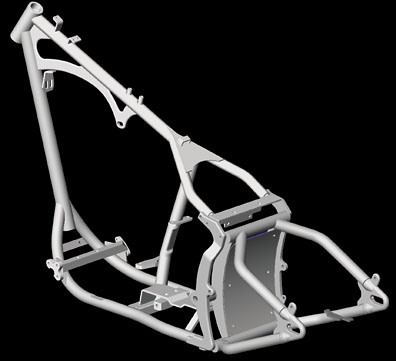

WIDE DRIVE 250 |
|
85-102 |
34 DEGREE RAKE |
4" STRETCH |
Dimensions:
Rake of 34 degrees.
4" Stretch downtube.
24-1/2" Backbone.
19-1/2" Length single downtube.
Material:
1020 DOM (Drawn Over Mandrel) steel tubing.
Downtube is 1-3/4" O.D. with .219" wall thickness.
Cradle tubes are 1-3/8" O.D. with .125" wall thickness.
Backbone and seat post are 1-1/2" O.D. with .219" wall thickness.
Special features:
TIG Welded.
Accepts 11" fender and 1984 & later flat side gas tanks.
Accepts Softail® style oil tank.
Accepts 250 rear tire with full width 1-1/2" belt.
Integral 5th bolt mounting within reinforced offset trans plate.
Included additionally:
Radius style fender struts for 11" fender (not shown).
Heavy duty swing arm, with 1" axle (not shown).
Front oil tank mount, polished stainless steel splash guard
with mounting hardware.
Rear frame pivot tube and hardware including
pivot bearings& spacers.
NOTE 1: Requires a 1-1/4" engine-to-inner primary spacer.
NOTE 2: Coil mounts and regulator mounts must be
determined by builder.
NOTE 3: Backbone is measured from back of neck to
front of seat plate gusset.Downtube is measured
from bottom of neck to top of cradle tube joint.
