ULTIMA WIDE DRIVE 250
SERIES
RIGID STYLE
|
RIGID
STYLE

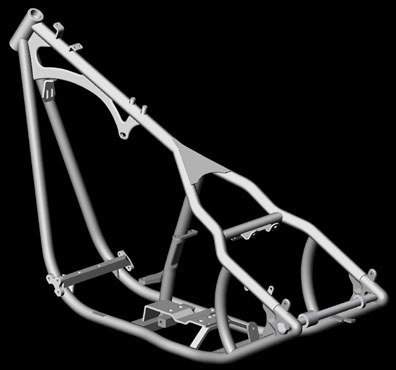

WIDE DRIVE 250 |
|
85-101 |
34 DEGREE RAKE |
4" STRETCH |
Dimensions:
Rake of 34 degrees.
4" Stretch downtubes, 24-1/2" backbone.
Material:
1020 DOM (Drawn Over Mandrel) steel tubing.
Legs are 1-3/8" O.D.
Backbone is 1-1/2" O.D.
Included
additionally:
1" Dia. rear axle (not shown).
Front oil tank mount.
Special features:
TIG Welded.
Accepts 11" fender and 1984 & later flat side gas tanks.
Accepts Softail® style oil tank.
Accepts 250 rear tire with full width 1.5" belt.
Integral 5th bolt mounting within reinforced offset trans
plate.
NOTE 1: Requires a 1-1/4"
engine-to-inner primary spacer.
NOTE 2: Coil mounts and regulator mounts must be
determined by builder.
NOTE 3: Backbone is measured from back of neck to
front of seat plate gusset.
