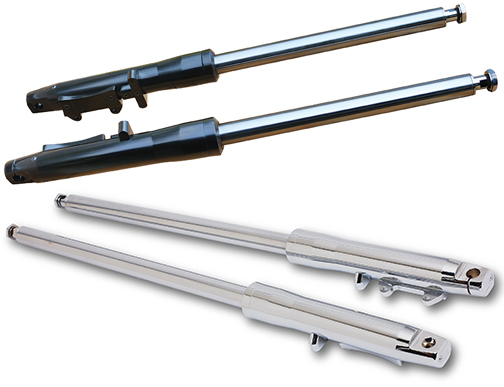

Special Features include:
Complete Softail® style billet fork sliders Completely assembled. Fork tubes are centerless ground 4140,
hard chrome finish with 1984 thru 1999 Softail® style brake application, single or dual disc caliper.
Featuring chrome plated billet lower legs, 1984 & later FXST style tube assemblies and
convertible style legs for both single or dual disc brakes.
Both Smooth style and Milled feature flush mount style axle & hardware,
and billet block off plates hiding damper screw holes.

All forks can be rebuilt using OEM components.

SMOOTH LOWERS DESCRIPTION
117-246 -4” Under stock length, 31-1/2” tube.
117-247 -2” Under stock, 31-1/2” tube.
117-31 Stock length, 31-1/2” tube.
117-161 +2” Over stock length, 31-1/2” tube.
117-162 +4” Over stock, 31-1/2” tube.
117-163 +6” Over stock, 31-1/2” tube.
117-164 +8” Over stock length, 31-1/2” tube.
117-165 +10” Over stock length, 31-1/2” tube.
117-166 +12” Over stock length, 31-1/2” tube.

SMOOTH LOWERS BLACK DESCRIPTION
117-248 -4” Under stock length, 31-1/2” tube.
117-249 -2” Under stock, 31-1/2” tube.
117-250 Stock length, 31-1/2” tube.
117-251 +2” Over stock length, 31-1/2” tube.
117-252 +4” Over stock, 31-1/2” tube.
117-253 +6” Over stock, 31-1/2” tube.
117-254 +8” Over stock length, 31-1/2” tube.
117-255 +10” Over stock length, 31-1/2” tube.
117-256 +12” Over stock length, 31-1/2” tube.

32-9 Replacement axle for Ultima® billet forks. .950” O.D. on right side.
Comes with tapered flathead screw.
